Solution Overview
The CQ-3770® connectivity solution delivers the
ultimate in IBM® 377x SNA/RJE terminal emulation connectivity by combining the
depth and full range of IBM emulation with the simplicity and ease-of-use of the
Windows® Graphical User Interface (GUI). This solution provides simple and
convenient connectivity from any remote or local workstation or client running a
Microsoft® Windows operating system. CQ-3770 is also
available for connectivity from any remote or local network server running a
Microsoft Windows server operating system.
CQ-3770 Features
Along with standard 3776/3777 SNA/RJE terminal emulation, CQ-3770 offers
outstanding features in the following areas:
- Interactive GUI Interface.
The user-friendly interface makes installation, configuration, and use of
CQ-3770 simple and easy to understand. Interface components
such as drop-down menus, customizable toolbars, clearly identified buttons,
and context-sensitive help can be found throughout the solution.
- Customizable Features.
The customizable toolbar and floating SmartKey Pad allow users convenient and
quick one button access to scripts, complex commands, and other programs, such
as CQ’s optional productivity solutions.
For example, a button can be setup that condenses a series of JES commands
into a single mouse click. This might be helpful as a means to have one
button queue access. A button may also be easily setup for one button
remote host login access.
- Scripting and Scheduling for Unattended
Operation.
CQ’s scripting language allows automated and unattended CQ-3770
host site communications through customized scripts and scheduling features.
Unattended automation facilities make host site communications more cost
effective than normal attended operation. Most any task can be scheduled
for execution through CQ’s scripting commands. When writing scripts,
script writers can easily trap errors, generate appropriate responses, and
even access convenient pop-up screen messaging when writing scripts. CQ
scripts can also be written to make system calls to the Windows operating
system in order to respond to a variety of communications events. For
assistance in customizing scripts for specific communications needs, CQ’s
knowledgeable Technical Support staff is also available.
- Numerous Connection Options.
CQ-3770 displays its flexibility through its numerous hardware
connection options. Whether communications is from a remote PC
workstation, a mobile laptop computer, or a direct local network connection,
CQ-3770 has a hardware connection solution that will work in any
of these environments as well as many more. Hardware options include
AutoSync™ 2 modems,
CQ-Sync™ PCI adapter cards, DLC Interface
connections through Ethernet and Token Ring adapter cards, channel attach via
Bus&Tag, and remote and local connectivity through a workstation connected to
Microsoft’s Host Integration Server.
Additional
Technical Features
- Interface Screen. An informative Interface screen
appears when terminal emulation occurs with the host. This screen
clearly displays the current status of communications, any OutBound console
data, and any InBound console data. Users can also conveniently scroll
through the data queues from this screen. All of the information is
displayed in a clear, concise manner.
- Configurator. CQ’s Configurator program allows users
to quickly and easily set communication options. Most of these options
are set from one screen, the opening CQ Configuration screen.
Users can generally set the necessary options from this screen within a matter
of minutes. The Configurator program can be used to create
configurations for multiple sites that may require a different set of
communications options.
- Printer Support. CQ-3770 supports any laser printer
that is supported by the Windows operating system. Customizable print
features such as the number of lines and columns and page orientation can
easily be setup through the solution. CQ-3770 also
supports the Windows operating system print spooler so the user can print
multiple jobs. Up to eight concurrent printers are also supported by the
solution. The solution also supports older legacy printers for uses that
require raw line prints.
- Data Transmissions. Frame Relay users can specify a large max
data size. Users are not confined to the standard max data sizes used by
other applications. By allowing users to set specific max data sizes,
CQ-3770 takes full advantage of the high throughput rate for Frame
Relay networks.
- CQ Diagnostics. CQ-3770 provides accessible
communications logging features through its audit and trace options.
These features are used for tracking the user’s data transfers and include
time stamps, file send and receive information, and file size information.
- Security Features. CQ-3770 is equipped with numerous
security features. Certain areas of the program are password protected.
The configuration data is decrypted dependent upon the proper entry of the
correct password. Dial-back security is also supported. Also, for
the ultimate in secure communications, the Triple Data Encryption Standard (Triple
DES) security option is available as an option at an additional
cost.
- Full MLU Support. CQ-3770 emulates up to eight (8)
Logical Units simultaneously. Full Multiple Logical Unit (MLU) support
translates into enhanced performance and quicker data throughput.
- Fast Batch File Transfers. CQ’s 3770 solution supports
compaction on all outbound data to insure maximum performance on files
transferred to the PC. For even quicker data throughput, repeated
character compression occurs on both inbound and outbound data.
Additionally, files can be transferred in either text or binary formats.
- Automatic Features. CQ’s 3770 solution provides auto-dialing
and auto-answer support for a wide range of modems and devices. Also,
CQ’s automatic file naming feature allows users to accept an unknown number of
files by naming each received file with a unique extension.
- ASCII/EBCDIC Translation. All incoming data is automatically
translated from EBCDIC to ASCII and all outgoing data from ASCII to EBCDIC.
The translation occurs according to CQ’s internal translation tables.
Users can also customize their own tables to perform special character
translations. For binary data transfers, automatic translation can be
disabled.
- CQ Access Point
Agreement (CQ’s Annual License Activation and Software Maintenance
Agreement). CQ recognizes the importance of providing our customers with
access to comprehensive technical services and support. CQ also feels that
access to product upgrades and updates is an integral part of an
organization’s overall software deployment strategy. With this in mind, CQ
provides the CQ Access Point agreement to its customers. With each
license acquisition, you receive annual license activation as well as access
to the product upgrade and technical support features of Software Maintenance.
Sample Screen Shots
CQ provides our web page visitors with a quick look at several sample
CQ-3770 screens.

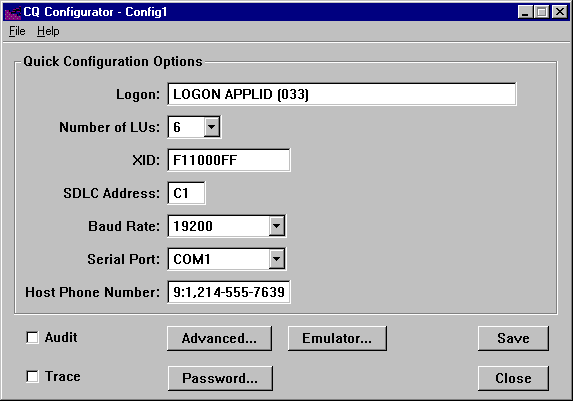

CQ Configurator Screen
This screen displays the settings required by most users to complete
configuration. Some users may need to access the Advanced Options
screen (see below) for further customization.

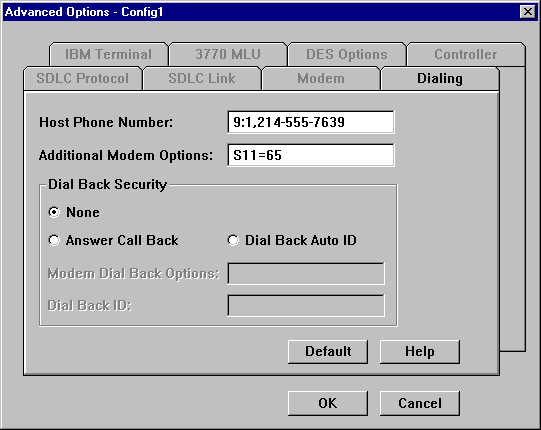

Advanced Options Screen
Most options that are necessary for host communications can be set through the
CQ Configurator screen (see above). In some cases, it may be
necessary to set some of the options that do not appear on the CQ
Configurator screen from within the various folder tab options (Dialing,
Modem, etc.) located on the Advanced Options screen.

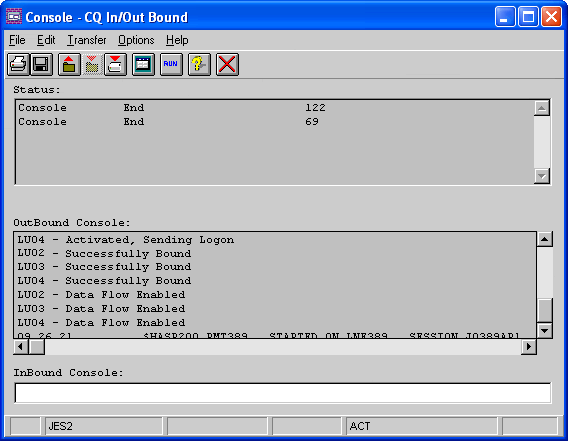

Interface Screen
The Interface screen appears in CQ In/Out Bound mode when you are
connected with the host.
Receive Data Screen
From this screen, you can change the settings associated with receiving data
from the host.
Receive Data - Form Options Screen
From this screen, you can change the settings associated with receiving form
data.
CQ Script Screen
From this screen, you can view a CQ script as it runs.
Customize Toolbar Screen
From this screen, you can customize the toolbar that appears within the
Emulator screen by adding, editing, or deleting toolbar buttons.
Hardware and
Connection Options
To communicate with a mainframe computer using CQ-3770, the PC
or notebook computer running CQ-3770 must be equipped with the
proper hardware. In most cases, the host site almost always determines the
connection option for communications between remote or local workstations and
the mainframe computer. For example, the host site might help to determine
the speed (baud rate) of the connection as the host site ultimately controls
this option. Other factors, such as port availability, type of port, and
other factors, are controlled by the workstation that is connecting with the
mainframe.
Each CQ-3770 connectivity solution is equipped with a primary
communications driver that is based on the user’s hardware configuration.
Hardware configuration options include AutoSync 2
modems, CQ-Sync PCI
adapter cards,
Ethernet Network Interface Cards (NICs), Token Ring
adapter cards, and Bus&Tag adapters. The type of connection can be
further divided into remote or local connections as well as connections from a
stand-alone workstation or a client workstation on a server. CQ-3270
is as flexible as your needs are, so contact CQ if
you have any questions about which solution is right for your application.
| Quick Jump to Connection
Option...
|
Hayes™ OPTIMA™ Modem (with AutoSync 2)
Before
the AutoSync technology, remote PC-to-host communications users were required to
install and configure numerous hardware components on the workstation including
an internal synchronous adapter card, cable, external synchronous modem, and, in
some cases, additional hardware such as a switch box.
In the 1980’s, CQ co-developed and engineered the original AutoSync
technology with Hayes Microcomputer Products, Inc. The AutoSync technology
allows synchronous PC-to-host users to eliminate additional hardware that was
previously required for host connectivity. In AutoSync mode, the modem
automatically performs an internal asynchronous-to-synchronous conversion, thus
permitting easy PC-to-host communications without any additional hardware
required!
The AutoSync 2 feature automatically performs the
sync/async conversion that is necessary for synchronous host communications over
analog dial-up lines at speeds up to 33.6 Kbps. This feature is available
in the OPTIMA line of external and internal modems that are currently
manufactured by Zoom® Telephonics, Inc. PCMCIA versions of the OPTIMA
modem are available directly through CQ.
CQ-Sync100™ PCI Adapter Card
This internal 32-bit synchronous adapter card
allows PC users to connect remotely to host computers over analog dial-up or
dedicated leased lines at speeds up to 33.6 Kbps. The card uses an RS-232
cable to connect to an external synchronous modem.
CQ-Sync 200™ PCI and CQ-Sync300™ PCI High-Speed Adapter Cards
These internal 32-bit high-speed synchronous adapter cards allow PC users to
connect remotely to host computers through two different hardware
configurations. The CQ-Sync200 PCI
adapter card uses an RS-232 cable to connect to an external synchronous modem or
high-speed device (CSU/DSU, Router, etc.). The
CQ-Sync300 PCI adapter card uses a V.35 cable.
- The first configuration uses the adapter cards to communicate over analog
dial-up lines, dedicated leased lines, ISDN lines, T1/Fractional T1 leased
lines, or other connection lines at speeds between 2400 bps and 128 Kbps.
The CQ-Sync PCI card is installed at the remote workstation and
is then connected to an external synchronous modem or high-speed device.
- The second configuration uses the adapter cards and high-speed devices to
communicate through a local router over routed networks.
Ethernet NIC or Token Ring Adapter Card (DLC Interface)
These connections function through internal Network Interface Cards (NICs)
installed in a PC that is part of an Ethernet or Token Ring network. The
CQ-3770 solution allows remote host connectivity through
Microsoft’s Data Link Control (DLC Interface*)
protocol. The solution communicates to the host through a local router
over a routed network (Frame Relay, etc.).
* Microsoft’s DLC Interface
and Windows XP Policy
According to
Microsoft’s web site, the DLC protocol is not available in Windows XP and
support for the DLC protocol has been discontinued in Windows XP.
However, a Windows XP version of the DLC protocol is available free for
download, although the DLC protocol may not work properly with Windows XP and
Microsoft does not support the DLC protocol with Windows XP. As a result
of Microsoft’s policy, CQ solutions using the DLC protocol under Windows XP
may be limited. CQ does not claim that the DLC version of its solution
will run error-free or without incidents in Windows XP, only that CQ software
support provided by CQ for DLC connections running in Windows XP is subject to
and limited by Microsoft’s policy for running DLC connections in Windows XP.
Local Direct Connection
This connection allows direct host connectivity through a local workstation.
If the workstation is connected to a local Ethernet or Token Ring network, the
solution communicates through an internal Ethernet NIC or Token Ring adapter
card installed on the local workstation. Another option is to use a
CQ-Sync PCI adapter card to perform
the direct connection to the host. For the ultimate in high-speed
connectivity, CQ’s solutions support channel attach to the host via Bus&Tag.
Microsoft Host Integration Server
This type of connection allows remote or local host
connectivity over TCP/IP, IPX/SPX, and other network connections. With
this connection, the CQ connectivity solution operates with Microsoft’s Windows
Server Systems™ such as Host Integration Server 2004 and Host Integration Server
2000. The CQ solution can reside on either the network server PC or a
Local Area Network (LAN) network workstation.
Communications Options
- Remote analog dial-up, dedicated leased line, ISDN, T1/Fractional T1, and
other connection lines.
- Remote routed network (Frame Relay, etc.) via serial connections or
Ethernet or Token Ring networks.
- Remote TCP/IP or IPX/SPX via Microsoft’s Host Integration Server 2004,
Host Integration Server 2000, and other Windows Server Systems.
- Local direct connections, including high-speed channel attach via Bus&Tag.
- Local TCP/IP or IPX/SPX via Microsoft’s Host Integration Server 2004, Host
Integration Server 2000, and other Windows Server Systems.
- Many other connections types for various communications options.
Contact CQ for additional information.
Specifications
Workstation (PC, Notebook, etc.) or
Server Requirements
- Processor. CQ recommends an Intel
Pentium/Celeron family processor, AMD K6/Athlon/Duron family processor, or
compatible processor with a speed of at least 1.0 GHz or higher.
- Memory. CQ recommends at least 128 MB or
higher of RAM.
- Hard Drive. CQ recommends at least 10 MB of
available hard disk space.
- Operating System. The workstation’s operating system
must be a Windows operating system (i.e., Windows 95, Windows
98, Windows NT, Windows 2000, Windows XP, etc.). CQ-3770
for servers users must be using Windows NT Server 4.0, Windows
2000 Server, or Windows Server 2003. For users utilizing Microsoft’s DLC
Interface networking protocol, please note that the Windows XP operating
system and Windows Server 2003 server operating system do not
support the DLC Interface.
- Peripherals. The monitor, keyboard, mouse, and
CD ROM drive must be compatible with the current operating
system.
- Other Requirements. Other communications hardware (modem,
adapter card, etc.), available slots and/or ports, and available settings may
also be required depending on the connection type. Also be aware that
the type of hardware used for your connection may affect operating system
compatibility. Contact CQ for additional information.
Host End Requirements
- The host computer must be an IBM mainframe, midrange, or compatible host
with an optional Front End Processor (FEP). The systems supported
include JES2, JES3, POWER, and other environments that support IBM’s RJE
option.
Top of Page
